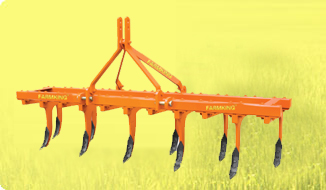

Heavy Duty Rigid Type Cultivator

ADVANTAGE

• The FARMKING 'Heavy Duty" Rigid Type Cultivator (Tiller) is designed to withstand toughest work conditions of hard soils.

FEATURES

• The profile cut tynes get their strength because of a peculiar design in which the stress prone points are shaped to resist any distorting strains.
• Main frame is made out of heavy duty reinforced with projection flats.

TECHNICAL SPECIFICATIONS

	9Tyne	11 Tyne
FRAME	65 x 65 mm Heavy Duty Box with 50 x 6 mm Bar	65 x 65 mm Heavy Duty Box with 50 x 6 mm Bar
TYNES	Profile cut single piece 25 mm thickness	Profile cut single piece 25 mm thickness
ANGLE BRACKET	65 x 10 mm	65 x 10 mm
SIDE SUPPORT	75 x 10 mm Angle	75 x 10 mm Angle
SHOVELS	En - 45, 8 mm Reversible	En - 45, 8 mm Reversible
FRAME BOLT	12 x 35 mm	12 x 35 mm
THREE POINT LINKAGE	65 x 16 & 50 x 16 mm	65 x 16 & 50 x 16 mm
HEIGHT	525 mm	525 mm
LENGTH	2000 mm	2450 mm
WIDTH	550 mm	550 mm
APPROX. WEIGHT	215 Kg.	250 Kg.

NOTE : The contents of this catalogue are only giving information to the end user without engagement from our side. The company can modify SPECIFICATIONS of the total machine and it's components without any previous notice.
