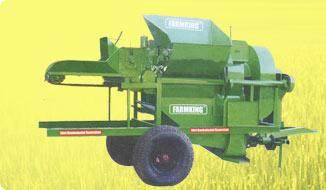

Upper Gala Multicrop Thresher

FARMKING MULTICROP TRESHER is developed to suit large holding farmers and customs hiring. It is very suitable for crop like wheat, soybean, pea, mustered. It is operated with 35 hp tractor P.T.O.

ADVANTAGE

• The FARMKING MULTICROP TRESHER consists of hopper with automatic feeding, which is drive by the gear box. Reverse gear can be use if necessary.
• The threshing unit contains three sharp cutting blades with spike tooth cylinder. The crop is cut in to small pieces & rubs against the concave which give superior separating performance.
• Two aspirators blowers are attached to threshing unit, which separates small pieces of crops residue from the seed.
• Further a shaking & bagging unit are used to collect the seeds.
• The unit is supplied with belts & pulleys to achieve variable cylinder speed, but the speed of blower can change according to requirement.
• It also consists of elevator or burm for loading seeds to trolley, pneumatic transport wheel & single hitch system.

TECHNICAL SPECIFICATIONS

THRESHRING DRUM Type Bar Type Diameter 850 mm Width 900 mm No. of Blades Three No. of Bar/Spike 58 BOLWER No. of Blades Three Clearing Blower Two Balance Wheel 125 Kg. THRESHER HEADER No. of Teeth Toller Two Type of feeding Conveyer Belt / Chute

THRESHER GEAR BOX Type 4-joint Safety By Reverse Gear   Height 2100 mm Type Worm Concave Multi Crop OVERALL DIMENSIONS Length 4200 mm Width 1550 mm Height 2450 mm Weight 1400 Kg.

NOTE : The contents of this catalogue are only giving information to the end user without engagement from our side. The company can modify SPECIFICATIONS of the total machine and it's components without any previous notice.
