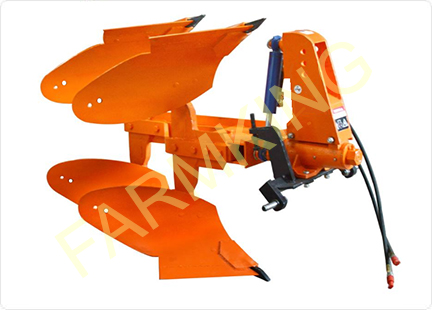

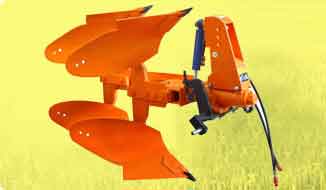

Hydraulically Reversible MB Plough

THE FARMKING HYDRAULICALLY REVERSIBLE MB PLOUGH is a specially designed agricultural implement used for turning the soil levels up side down, incorporating soil residues and making available more fertile layer for the new crop. It provides deep seed bed preparation with proper aeration and drainage. MB Plough is used as a primary tillage implement for soft and hard soils.

FEATURES

• Strong thick walled box Section frame.
• Body extension provision from 2-3 mould boards (pairs).
• Large inter body and under frame clearance.
• Provision for angle adjustment.
• Axle housing pipe.
• Provision of shear bolt.
• Specially heat treated parts and polished mould board.
• Reliable turn over device.
• Adjustable stray rod assembly
• Shock absorbing shaft

ADVANTAGE

• Strong thick walled box section frame provides solid base to the plough And Body frame can be extended to take another pair of ploughs.
• Enhances the scope of work for implement with higher HP tractor.
• Avoids blockages when ploughing in residue fields.
• Variable cutting width for different soil types.
• Avoids breakage of its parts in cloddy fields and prevents sticking of soil.
• Provides precise and quick turnover action and is able to withstand hard shock loads
• Provision of changing alignment and prevent side dragging.
• Allows the possibility for changing curvature angle.
• Less stress on tractor, hence longer life
• Protection of implement and tractor from excess load and ensures no twisting of plough legs in stony fields.

TECHNICAL SPECIFICATIONS

MODELNUMBER	2 BOTTOM	3 BOTTOM
REQUIRED POWER HP	50 - 75	80 - 90
TOTAL LENGTH OF LOW (MM)	2100 mm	3000 mm
NO. OF BOTTOMS	2	3
WORKING WIDTH OF EACH BOTTOM (mm)	300 / 350 / 400	300 / 350 / 400
UNDER FRAME POINT CLEARANCE (MM)	600	600
HORIZONTAL SUCTION (MM)	10 to25	10 to 25
VERTICAL SUCTION (PENETRATION PITCH)	10 to 20	10 to 20
WORKING DEPTH (MIN-MAX) mm	200 - 330 (8"-13") ±30 mm	200 - 330 (8"-13") ±30 mm
WORKING WIDTH	600 mm	900 mm
PENETRATION PITCH	620 mm	620 mm
APPROX. WEIGHT	450 Kg.	660 Kg.

NOTE : The contents of this catalogue are only giving information to the end user without engagement from our side. The company can modify SPECIFICATIONS of the total machine and it's components without any previous notice.
