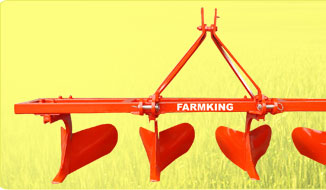

Tyne Ridger

ADVANTAGE

• The FARMKING MOUNTED TYNE RIDGER can produce ridge with maximum width of 1050 mm.

FEATURES

• It has heavy duty 62 mm sq. box type frames.
• Ridge depth & size can be adjusted accordingly.

TECHNICAL SPECIFICATIONS

MODEL	F-TR-03	F-TR-05
No. of Furrow	3 Furrow	5 Furrow
Frame	100 x 100 mm Sq.	100 x 100 mm Sq.
Working Depth (mm)	250 - 300 mm	250 - 300 mm
Frame’s Width (mm)	1850	2525
Approx. Weight (Kg.)	200	350
Required tractor power (HP)	35 HP & Above	60 HP & Above

NOTE : The contents of this catalog are only giving information to the end user without engagement from our side. The company can modify specifications of the total machine and it’s components without any previous notice.
