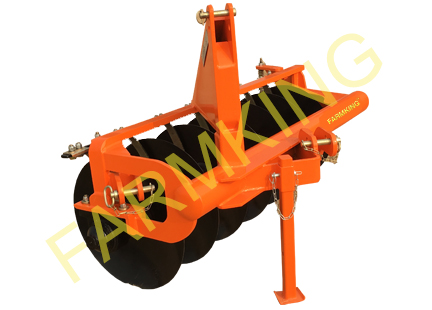

Poly Disc Harrow / Plough

The Poly Disc Harrow / Plough is applicable while cultivation is on during agricultural production. These are chiefly demanded in chopping up soil that has been recently plowed to remove cluster and loosen the soil if it has been crammed. This machine can make all kinds of agricultural soil more suitable and simpler in planting seeds. Our company has been appreciated for making harrows that have high tensile strength, robustness and low noise making. Our products are free from corrosion and available in various forms and sizes.

FEATURES

• Robust duty frame & axle
• Perfectly balanced for maximum ploughing result
• Requires minimum load even in tough soil conditions

TECHNICAL SPECIFICATIONS

Description	FKPDH-6	FKPDH-7	FKPDH-8
Frame	Rectangle Tubular Frame (125X95X8T)
Gang Axle	Dia. 63mm SOLID BAR
No. Of Disc	6	7	8
Type Of Disc	Notched Or Plain Disc (OPTIONAL)
Disc Diameter (mm)	560 X4T/ 610 X 4 T/ 5T(20/ 24/26)
Width Of Cut (mm Approx.)	1449	1635	1882
Distance Between Discs	228 mm
Bearing Hubs	2 Nos.
Weight (Kg. Approx.)	387	416	445
Power Required (HP)	45-50	50-55	55-60

NOTE : The contents of this catalogue are only giving information to the end user without engagement from our side. The company can modify SPECIFICATIONS of the total machine and it's components without any previous notice.
