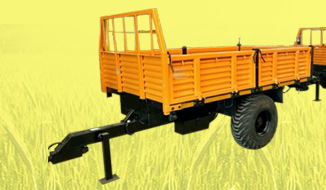

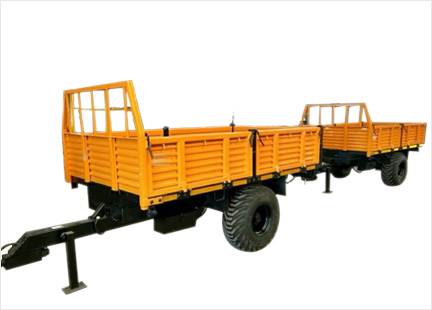

Hydraulic Tipping Trailer

ADVANTAGE

• Flexibility of unloading goods & materials by simply tipping them; saves operating cost.
• Removable & drop down door gives flexibility of loadings & unloading.
• Rear door drop down & vise versa.

FEATURES

• Heavy duty frame & structured framework brings in greater strengths & stability.
• World's super steel hub & taper roller bearing low maintenance cost.
• Reliable & heavy duty hydraulic cylinder that works under varying work conditions.
• Durable hitch forging transportation hitch manufactured by forging.
• Axle are used well with in their design capacity not on the limit e.g. 100 mm axles are fitted to our 10 tonne capacity trailers but are commonly used on other manufacturer's 12 tonne capacity trailers.

TECHNICAL SPECIFICATIONS

DESCRIPTION	CAPACITY : 5 TON	CAPACITY : 10 TON & Above
DIMENSION	3050 x 1800 x 500 mm (L x W x H)	3350 x 1950 x 600 mm (L x W x H)
FIRST CHASSIS	150 x 75 mm M.S. Channel	200 x 75 mm M.S. Channel
SECOND CHASSIS	100 x 50 mm M.S. Channel	125 x 65 mm M.S. Channel
SUPPORT CHANNEL	75 x 40 mm M.S. Channel	75 x 40 mm M.S. Channel
FLOOR PLATFORM	4 mm thickness	5 mm thickness
SIDE WALL	3 mm thickness corrugated / plan	3 mm thickness corrugated / plan
FRONT DOOR	Bolted for easy removable	Bolted for easy removable
SIDE & REAR DOORS	Two side doors & one rear door. Both drop down & removable	Two side doors & one rear door. Both drop down & removable
WHEEL RIM	Heavy duty double plate (Folding)	Heavy duty double plate (Folding)
NO. OF TYRES	2 nos. of size 7.50 x 16 (9.00 x 16 optional)	2 nos. of size 9.00 x 20 (1000 x 20 optional)
NO. OF AXLE	One	One
PAINTING	One cot Red oxide & two cot PU paint	One cot Red oxide & two cot PU paint
HYUDRALIC JACK (FOR TIPPING)	10 ton capacity heavy duty double stage	15 ton capacity heavy duty double stage
HITCH BEAM	125 x 125 mm square	125 x 125 mm square
HITCH	Forging for easy transportation	Forging for easy transportation
AXLE	75 mm square (Water proof)	100 mm square (Water proof)
AXLE BEARING	Taper roller	Taper roller
HUB	Super steel	Super steel
REQUIRED POWER (HP)	35 HP & Above	45 HP & Above
APPROX. WEIGHT(WITHTYRE)	1200 Kg.	1700 Kg.

NOTE : The contents of this catalogue are only giving information to the end user without engagement from our side. The company can modify SPECIFICATIONS of the total machine and it's components without any previous notice.
