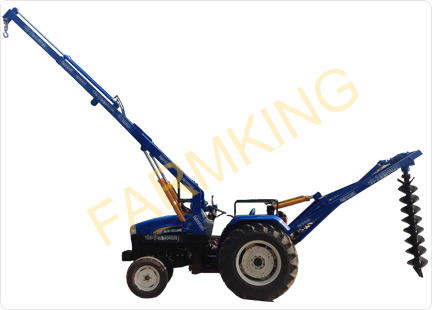

Tractor Crane with Hydraulic Post Hole Digger (Pillar / Pole Lifter)

The Tractor Crane with Hydraulic Post Hole Digger (Pillar / Pole Lifter) is widely demanded in agricultural industry owing to its capacity to take immense load without any complications. The tractor crane is accomplished with stabilizers that makes it capable of sustaining heavy load. The crane supported with hydraulic post-hole digger proves to be fastest method for situating electricity pole, easily loading & unloading and heavy-duty channel. It has an additional feature of being easy extension of the crane boom.

FEATURES

• Quickest method for installing electricity poles
• Trouble-free loading and unloading
• Simple extension of the crane boom
• Heavy-duty channel

TECHNICAL SPECIFICATIONS

Tractor Crane	Model : FK - TC
Frame	75X200 mm Channel Heavy Duty
Jack	3 No. Hydraulic 2 Stage
Hydraulic Pipe	Heavy Duty
Approximate Weight	1000 Kg.

Hydraulic Post Hole Digger	Model : FK - HPHD
PTO RPM	540
Required Power	40 Hp & Above
Main Frame	115 mm Seamless Tube
Hydraulic Jack	I. No Double Acting (With Control Panel)
Gear Body	Made By Graded C.I.
Oil Capacity	5 Liter - SAE 140
Gear Ratio	Bevel 2: I
Bearings	All Taper Roller
PTO	Telescope Type
Auger Point	Steel with Carbide Bit (Replaceable)
Auger Blade	High Carbon with Carbide Tips
Nut/ Bolts	High Tensile
Output Capacity	I Hr. / 60 Hole or (Depends on Soil)
Approximate Weight	400 Kg.
Augur Size	12" Dia.x72" Depth

NOTE : The contents of this catalogue are only giving information to the end user without engagement from our side. The company can modify SPECIFICATIONS of the total machine and it's components without any previous notice.
