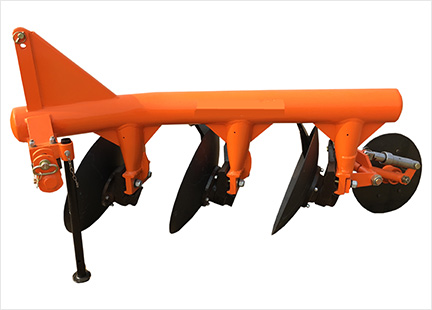

Mounted Disc Plough (Tubular Frame)

ADVANTAGE

• The FARMKING MOUNTED DISC PLOUGH is designed to work in all types of soil for basic functions such as soil breaking, soil raising, soil turning and soil mixing.
• It is used to open the new fields and to process the stony areas.
• it can be used easily at rocky and rooted areas.
• It is especially useful in hard and dry trashy land conditions and in soils where scouring is a major problem.

FEATURES

• In conformity with the soil conditions it is being produced with 2-3-4-5 and 6 Disc (Bottom) version with an option for extra kit for converting it to extra disc plough.
• It is directly mounted to the tractors.
• The extra heavy-duty seamless tubing frame has high trash clearance allowing the plough to operate under heavy crop residue.

TECHNICAL SPECIFICATIONS

SIZE	2 BOTTOM	3 BOTTOM	4 BOTTOM	5 BOTTOM (4+1)
FRAME	Heavy Duty seamless Tubular Frame (OD 168 mm with 8 mm thickness)	Heavy Duty seamless Tubular Frame (OD 168 mm with 10 mm thickness)	Heavy Duty seamless Tubular Frame (OD 168 mm with 10 mm thickness)	Heavy Duty seamless Tubular Frame (OD 168 mm with 12 mm thickness)
MOUNTED	CAT - II	CAT - II	CAT - II	CAT - II
LENGTH	1800 mm	2400 mm	3000 mm	3600 mm
WIDTH	825 mm	1050 mm	1250 mm	1500 mm
HEIGHT	1200 mm	1225 mm	1250 mm	1250 mm
DISCS	660 x 6 mm Boron steel	660 x 6 mm Boron steel	660 x 6 mm Boron steel	660 x 6 mm Boron steel
DISC SPACING	550 mm	550 mm	575 mm	575 mm
COLTER DISC	500 x 6 mm boron steel	500 x 6 mm boron steel	500 x 6 mm boron steel	500 x 6 mm boron steel '
SCRAPPER	6 mm adjustable	6 mm adjustable	6 mm adjustable	6 mm adjustable
BEARINGS	2 Nos. Taper roller	2 Nos. Taper roller	2 Nos. Taper roller	2 Nos. Taper roller
WIDTH OF CUT	500 - 550 mm	875 - 925 mm	1150 - 1200 mm	1575 - 1625 mm
REQUIRED TRACTOR	40 - 45 HP	50 - 60 HP	70 - 80 HP	90 HP & Above
APPROX.WEIGTH	275 Kg.	400 Kg.	500 Kg.	600 Kg.

NOTE : The contents of this catalogue are only giving information to the end user without engagement from our side. The company can modify SPECIFICATIONS of the total machine and it's
