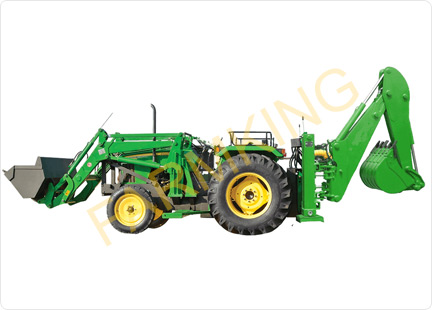

Tractor Front Loader and Back Hoe

The Tractor Front Loader is meant for carrying heavy and medium load while the attached backhoe helps in bulldozing and tearing the ground or surface. It digs by drawing earth backward instead of lifting it with a forward motion. The machine is approved and tested on all international parameters and its arm is used as a crane mostly by slinging the lifted object from the support linkages bend the dipper. We make it available in standard size and in customized form to suit our client requirement.

FEATURES

• Easy assembling and de- assembling from tractor
• Time saving
• Highly productive

TECHNICAL SPECIFICATIONS

Model	FK-TFLBH
Maximum Digging Depth	3500 mm (11.5 ft)
Maximum Load Over Height	3140 mm (10.3 ft)
Maximum Reach At Ground Level	4400 (14.43 ft)
Boom Rotation	180* degree
Maximum Tear Out Bucket + Dippers	5700 kgf
Frame	Fabricated 6 mm Sheet
Height	11.5 Ft.
Width	6 Ft.
Bucket Size	6 Ft. X 32"
All Over Height	15.5 Ft.
Min. Weight	850 Kgs.
Max. Weight	1250 Kgs.
Hp Required	50 HP and Above

NOTE : The contents of this catalogue are only giving information to the end user without engagement from our side. The company can modify SPECIFICATIONS of the total machine and it's components without any previous notice.
