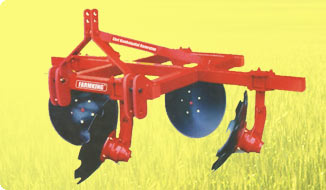

Mounted Disc Ridger

ADVANTAGE

• The FARMKING MOUNTED DISC RIDGER can produce ridge with maximum width of 1050 mm.
• Available in 2 bottoms & 4 bottoms to make one ridge & two ridges respectively.

FEATURES

• It has heavy duty 59 sq. box type frame.
• Boron steel discs.
• Ridge depth & size can be adjusted.

TECHNICAL SPECIFICATIONS

	One Row (2 Disc)	Two Rows (4 Disc)
No. of Discs	2	4
Disc Dia. X thickness (mm)	660 x 6 Born steel	660 x 6 Born steel
Maximum width between ridges (mm)	1010 mm	1000 mm
Working Depth (mm)	350	330
Frame's Width (mm)	1850	2525
Required tractor power (HP)	35 HP & Above	60 HP & Above
Approx. Weight (Kg.)	200 Kg.	450 Kg.

NOTE : The contents of this catalogue are only giving information to the end user without engagement from our side. The company can modify SPECIFICATIONS of the total machine and it's components without any previous notice.
