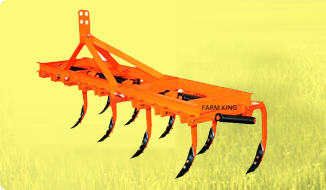

Heavy Duty Spring Loaded Cultivator

ADVANTAGE

• The FARMKING SPRING LOADED CULTIVATOR (TILLER) is designed for the light and medium soils.
• Used for loosening and aerating soil to a depth of 250 mm.
• Prepares seed beds quickly and economically.

FEATURES

• When one tyne strikes a hidden object, the others continue to work at correct depth.

TECHNICAL SPECIFICATIONS

PARTICULARS	9 Tyne	11 Tyne
FRAME	75 x 40 mm channel	75 x 40 mm channel
SPRING	10 mm WD,50 mm OD	10 mm WD,50 mm OD
TYNES	50 x 25 mm forged	50 x 25 mm forged
PAIRS	50 x 8 mm flat	50 x 8 mm flat
ANCHOR PIN	25 mm	25mm
SHOVELS	8 mm En-45Reversible	8 mm En-45Reversible
FRAME BOLT	12 x 32 High Tensile	12 x 32 High Tensile
3 POINT LINKAGE	50 x 12 mm	50 x 12 mm
HEIGHT	530 mm	530 mm
LENGTH	2000 mm	2450 mm
WIDTH	700 mm	700 mm
TILLER PIN	28 mm (Standard)	28 mm (Standard)
POWER REQUIRED (HP)	30 - 35 HP	40 - 45 HP
APPROX WEIGHT	225 Kg.	275 Kg.

NOTE : The contents of this catalogue are only giving information to the end user without engagement from our side. The company can modify SPECIFICATIONS of the total machine and it's components without any previous notice.
