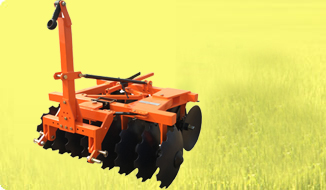

Heavy Duty Mounted Cum Trailed Offset Disc Harrow (Compact Model)

ADVANTAGE

• The FARM KING Mounted Heavy Duty Compact Disc Harrow used in open farm workings for the superficial ploughing, for the shatter of clods, preparation of soil for sowing, burial of organic substances and remains.
• To air the soil and eliminate the weeds.
• For breaking the roots.
• It can be used in light and medium soil.

FEATURES

• High quality Boron steel discs.
• Tillage depth of the harrow is 1500 mm.
• Easily transportable-as it gets easily attached and mounted.
• Maintenance is easy but need not to be scheduled.

TECHNICAL SPECIFICATIONS

	8X8	9X9	10X10
FRAME	Square Box Frame	Square Box Frame	Square Box Frame
GANG BOLT	32 mm Central square Solid Bar With Split Gangs	32 mm Central square Solid Bar With Split Gangs	32 mm Central square Solid Bar With Split Gangs
LENGTH	1875 mm	1875 mm	1875 mm
WIDTH	1875 mm	2100 mm	2325 mm
NO. OF DISCS	16	18	20
TYPE OF DISC	Notched (Front / Rear) Plane Optional	Notched (Front / Rear) Plane Optional	Notched (Front / Rear) Plane Optional
DISC DIAMETER	560 mm	560 mm	560 mm
WIDTH OF CUT	1775 mm	2000 mm	2250 mm
DISTANCE BETWEEN DISCS	225 mm	225 mm	225 mm
BEARING HUBS	8 with Taper Roller Bearing	8 with Taper Roller Bearing	8 with Taper Roller Bearing
ALLOVERHEIGHT	1100 mm	1100 mm	1100 mm
REQUIRED POWER HP	45 Hp & Above	50 Hp & Above	55 Hp & Above
APPROX. WEIGHT	580 Kg.	610 Kg.	640 Kg.

NOTE : The contents of this catalogue are only giving information to the end user without engagement from our side. The company can modify SPECIFICATIONS of the total machine and it's components without any previous notice.
